The iVSEC HC100XA is a next‑generation HaLow (802.11ah) enabled security camera engineered for remote, hard‑to‑reach, and infrastructure‑poor environments. The HC100XA delivers long‑range HaLow wireless performance, outstanding penetration through obstacles, and a battery system designed for true long‑term deployment.
At its core is a high‑efficiency rechargeable battery rated for over 3000 charge cycles, ensuring years of reliable operation with minimal maintenance. When configured for event‑based recording, the HC100XA can operate for up to 90 days on a single charge, even when triggered 25 times per day; making it ideal for rural properties, construction sites, utilities, and temporary installations where power access is limited.
The HC100XA pairs seamlessly with iVSEC’s HaLow NVRs, creating a secure, long‑distance wireless network that outperforms traditional Wi‑Fi in range, stability, and interference resistance. Its compact form factor, intelligent power management, and rugged design make it a dependable choice for professionals who need surveillance that simply works; no cabling, no repeaters, no compromises.

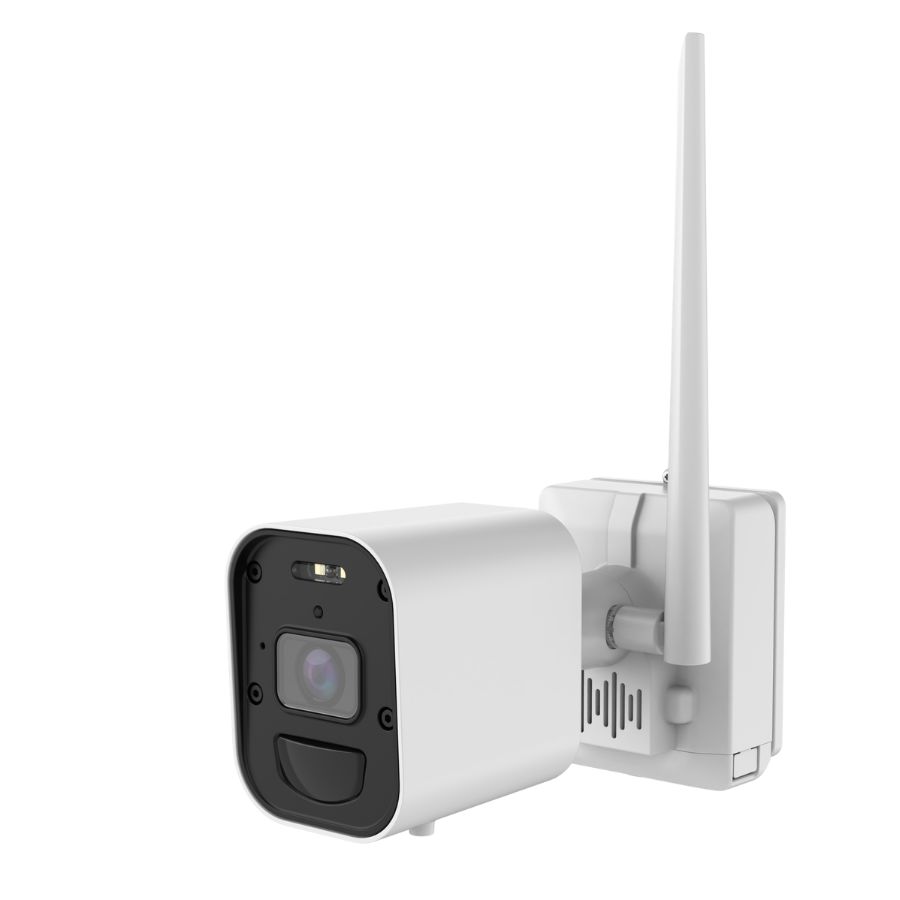

HC100XA Security Camera
Features
Deter, Detect, and Defend
In built protection Siren, Flashing Lights, and Scheduling Assistant for Enhanced Security. Advanced Deterrent.
Value AI
Complete protection with accurate and targeted alerts to potential threats & reducing false alarms.
Specs
| Camera Type | Turret |
| Image Sensor | 1/2.7″ |
| Maximum Video Resolution (Megapixels) | 8 |
| Maximum Video Resolution | 3840 x 2160 |
| Lens | (H.FOV: 111°) |
| Lens Type | Fixed |
| Maximum Night IR Distance (M) | 10 |
| LED | IR, White |
| Video Compression | H.265, H.264, MJPEG |
| ONVIF depends on firmware version | ONVIF (Profile S/G/T/M) 21.12 or greater, HTTP API |
| Accessories | DB100XA-CH |
| Outdoor Use | Yes |
| IP Rating | IP66 |
| IK Rating | IK04 |
| Day/Night Mode | Yes |
| Image Enhancement | Flip mode, Brightness, Contrast, Saturation, Sharpness, 3D Noise Reduction |
| Active Deterrent | No |
| Intelligent Video (IVS) | Human Detection, Motion Detection |
| Edge Recording microSD/SDHC Card | Micro SD Card (512GB Max) |
| Multiple Streams (encode format) | 2 Streams |
| Software | Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app (QR code) |
| Protocols | IPv4/IPv6, TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, SMTP, UPnP, DNS, DDNS, NTP, PPPOE, RTP/RTSP, SNMP, SMTP, P2P (QR Code) |
| Language | English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russia, Hebrew, Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish |
| Cloud option (camera only) | Dropbox |
| Audio Streaming | Yes (microphone and speaker built in) |
| Wi-Fi | Wi-Fi Halow (802.11ah) |
| Wireless Distance | up to 700m* |
| Power Over Ethernet | No |
| Power Supply | Battery (5V) |
| Battery Capacity | 8700mAh |
| Power Consumption | < 6.5W |
| Battery Life | 3000 charges* |
| Connectors | microUSB Port |
| Operating Environment | -20ºC to 50ºC (-4ºF-122ºF) Humidity: ≤90% RH |
| Weight (Net) kg | 0.12 |
| Weight (Gross) kg | 0.5 |
| Warranty | 3 Year Warranty |
| *Depending on temperature and environment | |
