SONY Starvis sensor, Human and vehicle tracking, Extra photos/frames per second (FPS), Improvements to Wide Dynamic Range (WDR) to handle difficult lighting. Locking mechanism on housing. Supports SD card. New tech Infra-red LEDs.

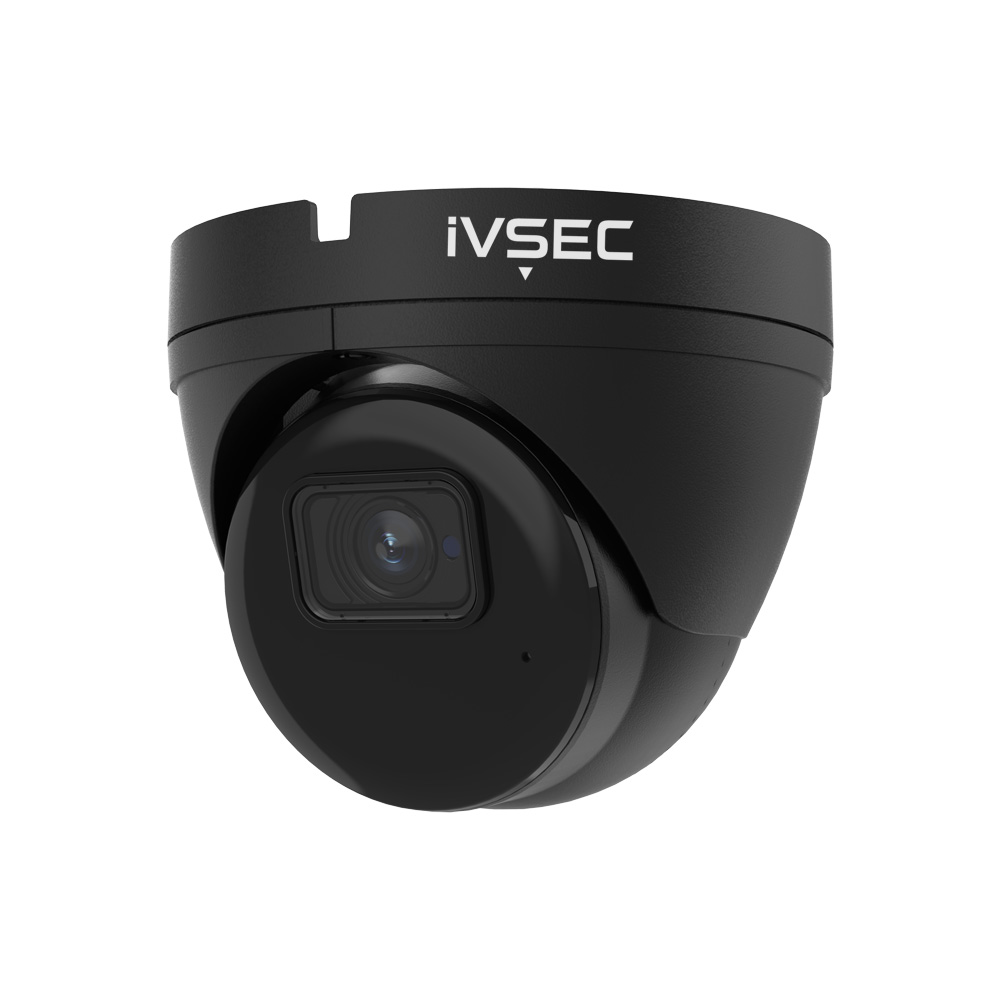

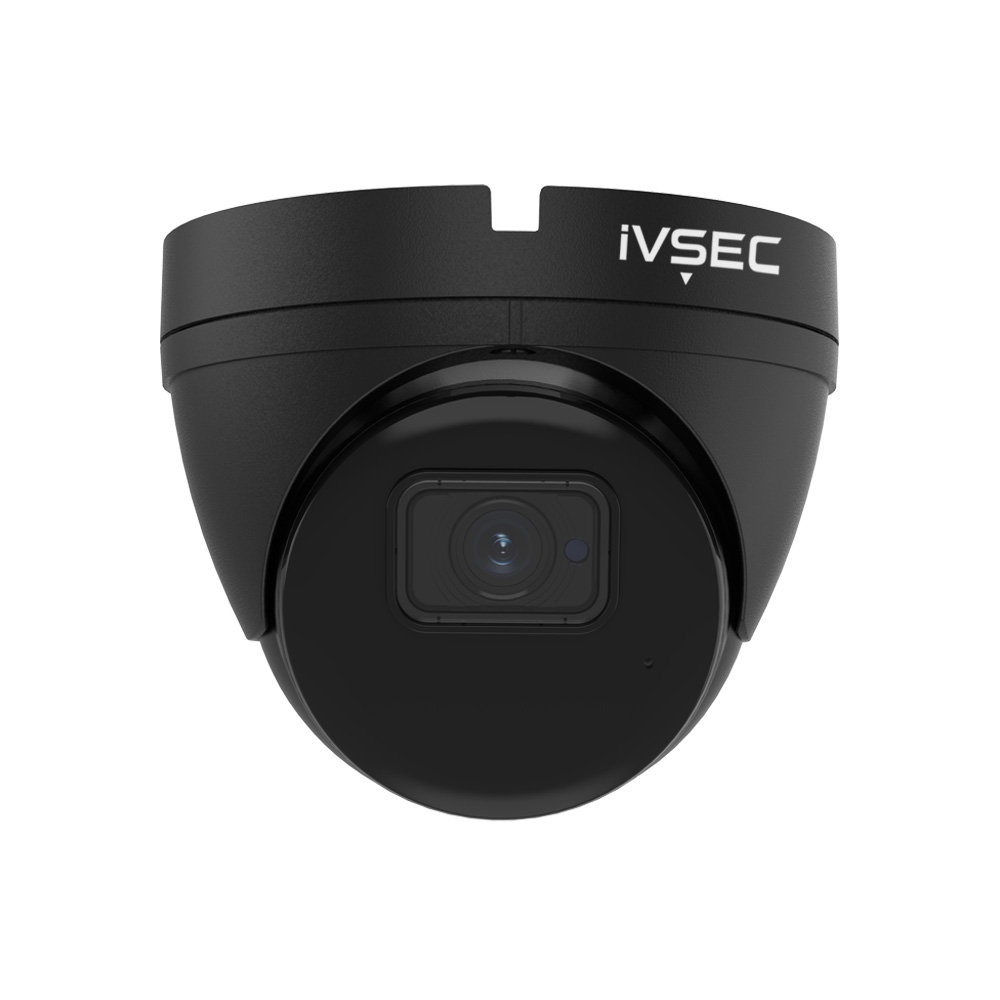

NC323XD-BLK Security Camera
Specs
Camera Type | Turret |
Image Sensor | 1/2.8″ 8MP Progressive CMOS |
Maximum Video Resolution (Megapixels) | 8 |
Maximum Video Resolution | 3840 x 2160 |
Frames Per Second (FPS) | 20 |
Lens | 3.6 mm (H.FOV: 88°) |
Lens Type | Fixed |
Maximum Night IR Distance (M) | 30 |
LED | IR |
Video Compression | H.265+, H.265, H.264+, H.264, MJPEG |
ONVIF depends on firmware version | ONVIF (Profile S/G/T) 21.12 or greater, HTTP API |
Accessories | IV2422X, IV2433X, IV2444X, IV2455X |
Outdoor Use | Yes |
IP Rating | IP66 |
Vandal Resistant | Yes |
Day/Night Mode | Auto |
Image Enhancement | Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue, Corridor Mode, Mirror, Angle Flip, Back Light, White Balance, Shutter, Time Exposure, Defog, 3D Noise Reduction |
Intelligent Video (IVS) | Perimeter Intrusion Detection, Face Recognition, Human & Vehicle Detection, Line Crossing Detection, Stationary Object Detection, Crossing Counting, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection, Rare sound detection |
Edge Recording microSD/SDHC Card | Micro SD/SDHC Card |
Multiple Streams (encode format) | 3 Streams |
Software | Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app (QR code) |
Protocols | TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SNMP, P2P (QR code) |
Language | English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russia, Hebrew, Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish |
Cloud option (camera only) | Dropbox |
Audio Streaming | Yes (microphone included) |
Ethernet | Ethernet (10/100 Base-T) |
Power Over Ethernet | Yes |
Power Supply | Power over Ethernet IEEE 802.3af, DC12V |
Power Consumption | < 7W |
Connectors | RJ-45, DC Power Input, Reset Button |
Operating Environment | -30~+55°C/less than ≤ 95% RH |
In The Box | Free Software available from FTP, Printed quick user guide, installation template, mounting screws and plugs |
Product Dimensions (H x W x L) mm | 100 x 100 x 100 |
Packaging Dimensions (H x W x L) mm | 120 x 140 x 140 |
Weight (Net) kg | 0.44 |
Weight (Gross) kg | 0.53 |
Warranty | 3 Year Warranty |
